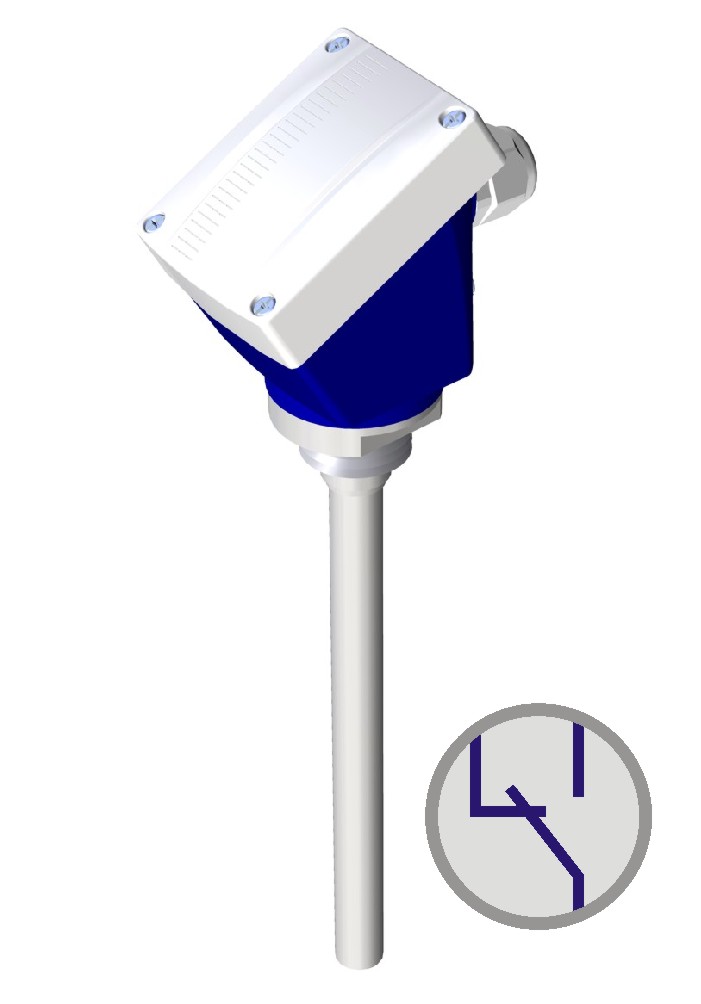

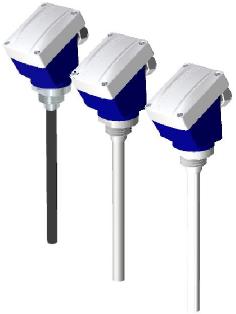

Capacitive sensors Series SCAV TB
Application areas
Level detection in storage silos, water treatment, pumping stations , industrial laudries, beverage industry, cosmetology.
Product description
Capacitive level sensors with integrated amplifier for liquids and solids. Robust construction, materials resistant to corrosive products, simple and reliable.
Technical specifications
Lengths of detection: 200/500/100/1500/2000/2500/2970 mm
Accuracy: < 1 %
Process connections:
• 1 "BSP AISI 316L , PVC, PP , PVDF
• Others on request
• Vertical mounting or on the side of the tank ( SCAP model)
• Housing box IP -67, orientable 350 °
Material probe: PVC , PP , PVDF, HALAR
Level detection :
• Programmable functions : Level control mini or maxi / filling or emptying
• Relay SPDT 6A/240AC - 6A/24VDC
• Adjustable time delay 0 .. 3s
• Dielectric Constant: > 1.8
• Power supply: 24VDC , 24VAC, 125VAC 110 .. 220 .. 240VAC
Options:
• Tube separator and / or dielectric AISI -316
• Thermal separator AISI -316
• Output 4 -20mA ( TCAV model)
