Capacitive sensors Series SCRR and SCR

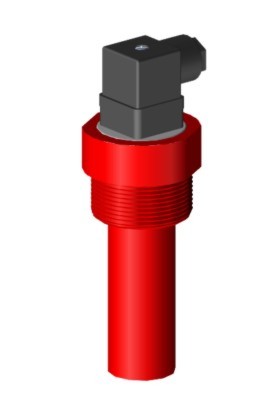

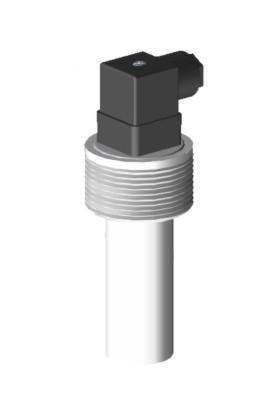

Capacitive sensors SCRR35C Capacitive sensors SCRR35TC
Application areas
These sensors are provided for detecting the level of grains, powder, peanuts, chemical products etc...
Product description
Capacitive sensors work with the DNAS / DNAT amplifier relays for maximum and / or minimum level control.
Technical specifications

Body Material:

  • PVC or PTFE

Process connection:

  • R 1'' 1/2 BSP

Electrical Connection:

  • DIN43650

Voltage:

  • 30 V maximum

Frequency:

  • 500 Hz maximum

Consumption:

  • ON: 5 mA maximum
  • OFF: 15 mA maximum

Sensitivity:

  • Adjustable by potentiometer 15 turns

Working temperature:

  • -15 ° C ... +70 ° C

Detection distance:

  • 4 .. 12 mm, LED indication

Maximum pressure:

  • 10 bar to 60 ° C

Max. cable:

  • <200 m

Protection:

  • IP 65

Relay amplifiers:
