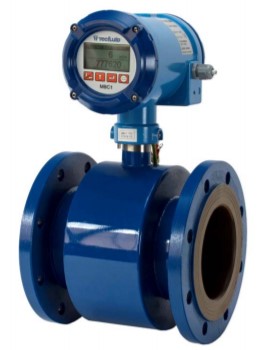

Electromagnetic flowmeter Series FLOMID

Débitmètre électromagnétique Flomid 2FX MX4 Débitmètre électromagnétique Flomid 1FX MX4 Débitmètre électromagnétique Flomid 0FX
Application areas
Suitable for flow measurement of liquids with conductivity higher than 20 uS/cm.
Product description
Electromagnetic flowmeter. Modular design in compact and separate version. Readings are independent of density, viscosity, temperature and liquid pressure. Without moving elements and with a low pressure drop. Suitable for liquids with solids. High chemical resistance. Can be installed in any position, provided that the pipe is always full (in vertical pipes upwards flow is recommended). Low power consumption.
Technical specifications

Measuring range:

  • 10 l/h … 7000 m3/h H2O

Accuracy:

  • +-0,5%

Connections:

  • DN3 … DN500, others on request
  • DIN or ANSI flanges
  • Between flanges DIN or ANSI flanges
  • Sanitary connection
  • Others on request

Materials:

  • Body: EN 1.4404 (SS 316L)
  • Liner: PP, PVDF, Ebonite & PTFE
  • Electrode: Hastelloy C, EN 1.4404, Zr, Ti and Tantalum

Options:

  • High pressure design on request (only for flange connection)
  • Other flange standard on request

Converters:



  • MX4: flow indicator, totalizer, velocity, bidirectional, self-diagnosis

- 4-20 mA, 0...5000 Hz, 2 relay outputs, HART™ protocol, Modbus

- Power supply 90...265 VAC, 50-60 Hz, 12...48 Vdc



  • XT5: flow indicator, totalizer

- 4-20 mA, 0...10 000 Hz, HART™ protocol

- Power supply 230, 240, 115, 24 VAC, 50-60 Hz, 24 Vdc



  • XT5D: flow indicator, totalizer, preset dosage

- Output 1000 pulses/l

- Power supply 24 Vdc
