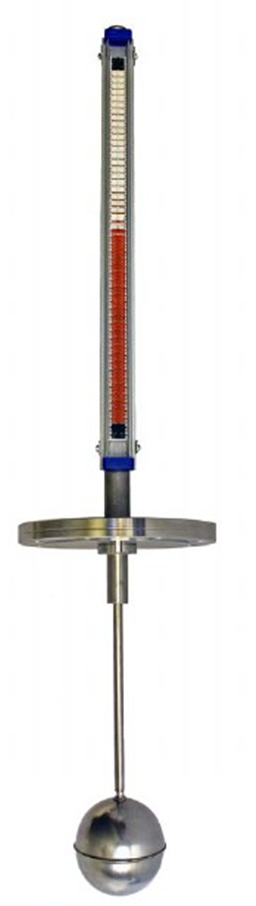

Indicator / Transmitter Series LS

Application areas
Chemical, petrochemical and process industries, heating and cooling systems, marine industry, boiler industry, storage parks...
Request for quotation
Catalogue
User manual
Product description
Indicator / Transmitter for liquid level of simple construction, suitable for high pressure and temperature conditions. The level indication by magnetic transmission between the internal float magnet and the external indicator system ensures a complete sealing system with no possibility of leakage. Possibility of adjusting contact switches to the full scale. Excellent chemical and mechanical resistance.
Technical specifications

Length:

  • 0,15 … 15 m (depending on manufacturing material)

Accuracy:

  • 4 mm

Connections:

  • EN 1092-1 or ANSI flanges
  • Thread fittings G2”/ 2”NPT
  • Others flanges and connections on request
  • Top mounted

Materials:

  • EN 1.4404 (AISI 316L), (others on request)

Local indication

Options:

  • Adjustable limit switches, Ex
  • 4-20 mA analog output, Ex version on demand
  • HART ™ , Profibus or Fieldbus protocols on demand

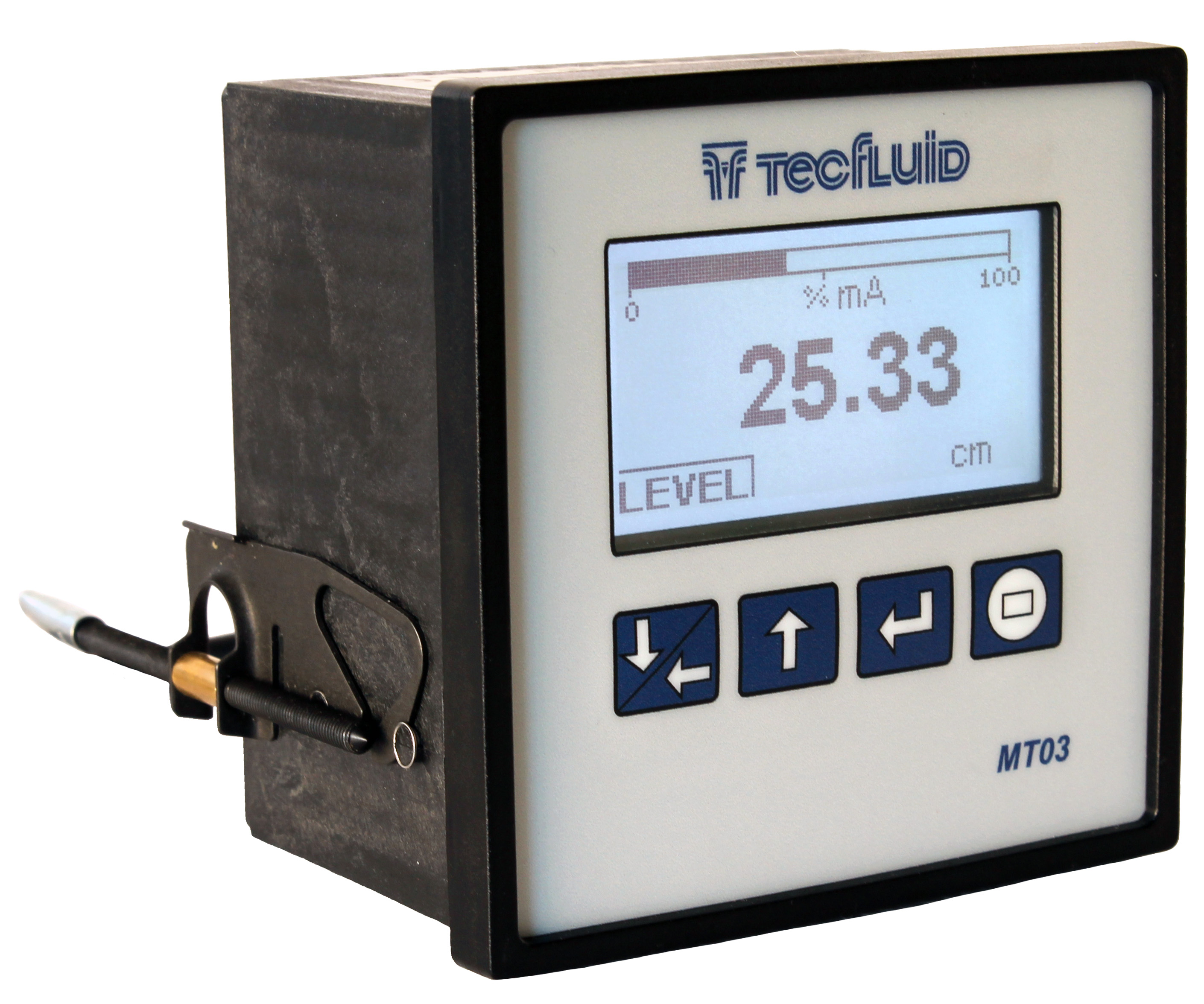

  • Electronic converter MT03L
