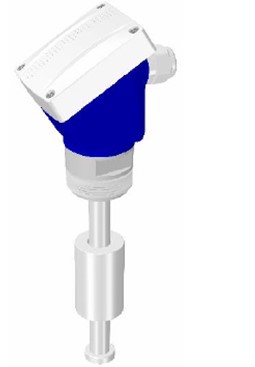

Level controllers by float series IMN TB INOX
Application areas
Water treatment, pumping stations, auxiliary tanks of food machinery, textiles, chemical industries, level control for naval transport, pumps, remote control receiving raw materials and level alarm max.
Product description
Level controllers for liquids, actuation of the reed contact by the magnetic field of the float.
Technical specifications
Length: 0.09 ... 3.5 m
Accuracy: + -2 mm
Connections:
• Mod. IMN DB: DIN DN50
• Mod. IMN TB: thread G 2 "or 1 ½"
• Others on request
• Mounting Top or on the side of the tank
Materials: EN 1.4401 (AISI 316), PVC, PP, PTFE, PVDF
Level detection:
• 1 ... 5 contacts
• Contact Reed NO: 120 WVA / 250 VAC-3A
• Contact Reed NONC 60 WVA / 230 VAC, 1A
• Distance between contacts:> 40 mm
• Options: relay protection and control with time delay (series PSIA / DSIA)
