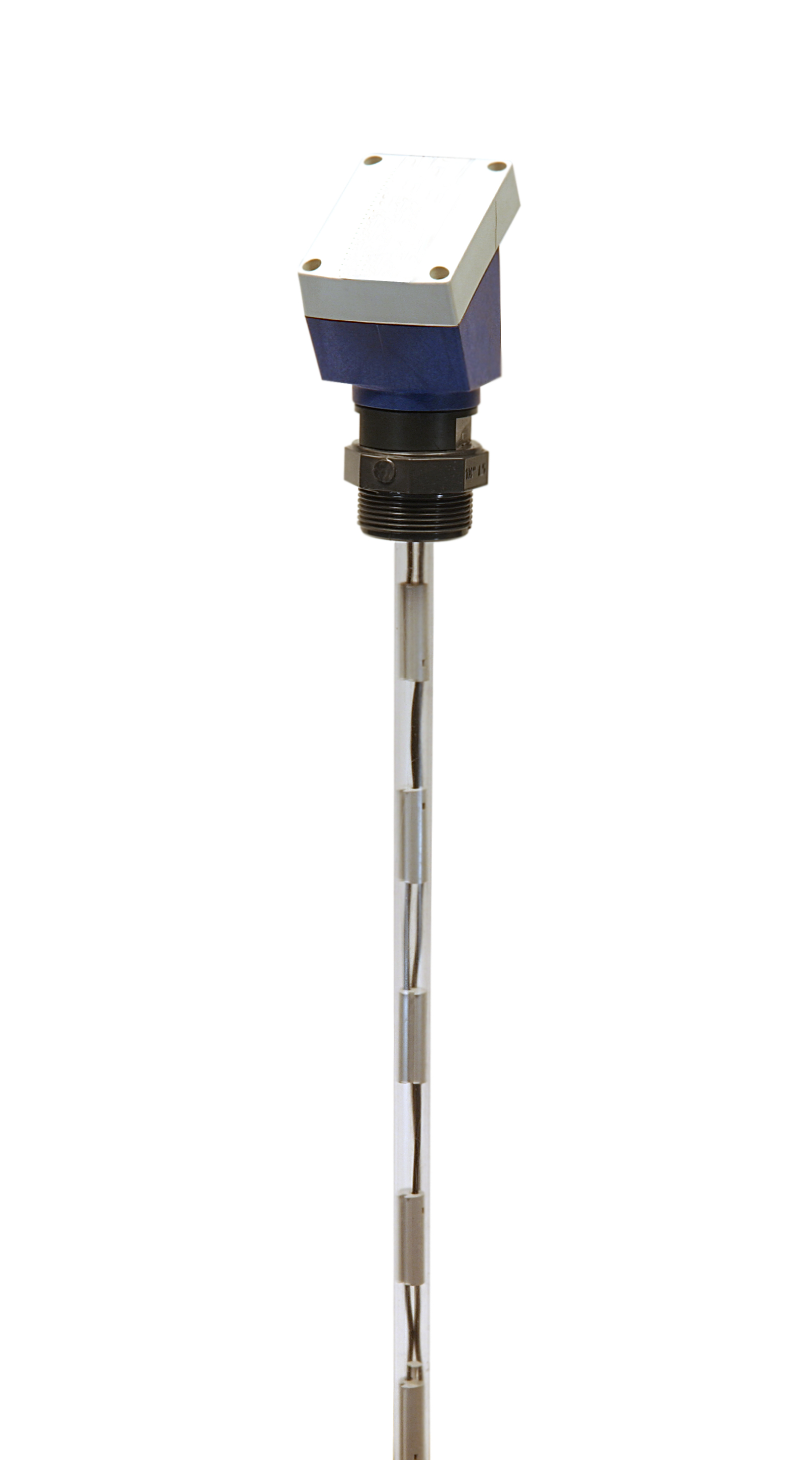

Level multipoints Indicator / Transmitter Series MPS-TB
Application areas
Water treatment, pumping stations, industrial process control, chemical, food, textile industries ...
Product description
Level multipoints Indicator / Transmitter for liquids, construction PVC, PP, PVDF, standard lengths. Excellent chemical and mechanical resistance. Remote indication electronics package, with programmable relay outputs 4-20mA.
Technical specifications
Length: 300-600-900-1100-1500-1850-2450 mm (other lengths on request)
Minimum density: 0.5
Connections:
• Flanges PVC, PP, PVDF, DIN DN25 (DN50 INOX-316L)
• Threaded Connection PVC, PP, PVDF 1 "1/2 / (INOX 316L-2")
• Other connections and flanges on request
• Mounting on top of the tank
Materials: PVC, PP, PVDF, 1.4404 (AISI 316L)
Deported indication

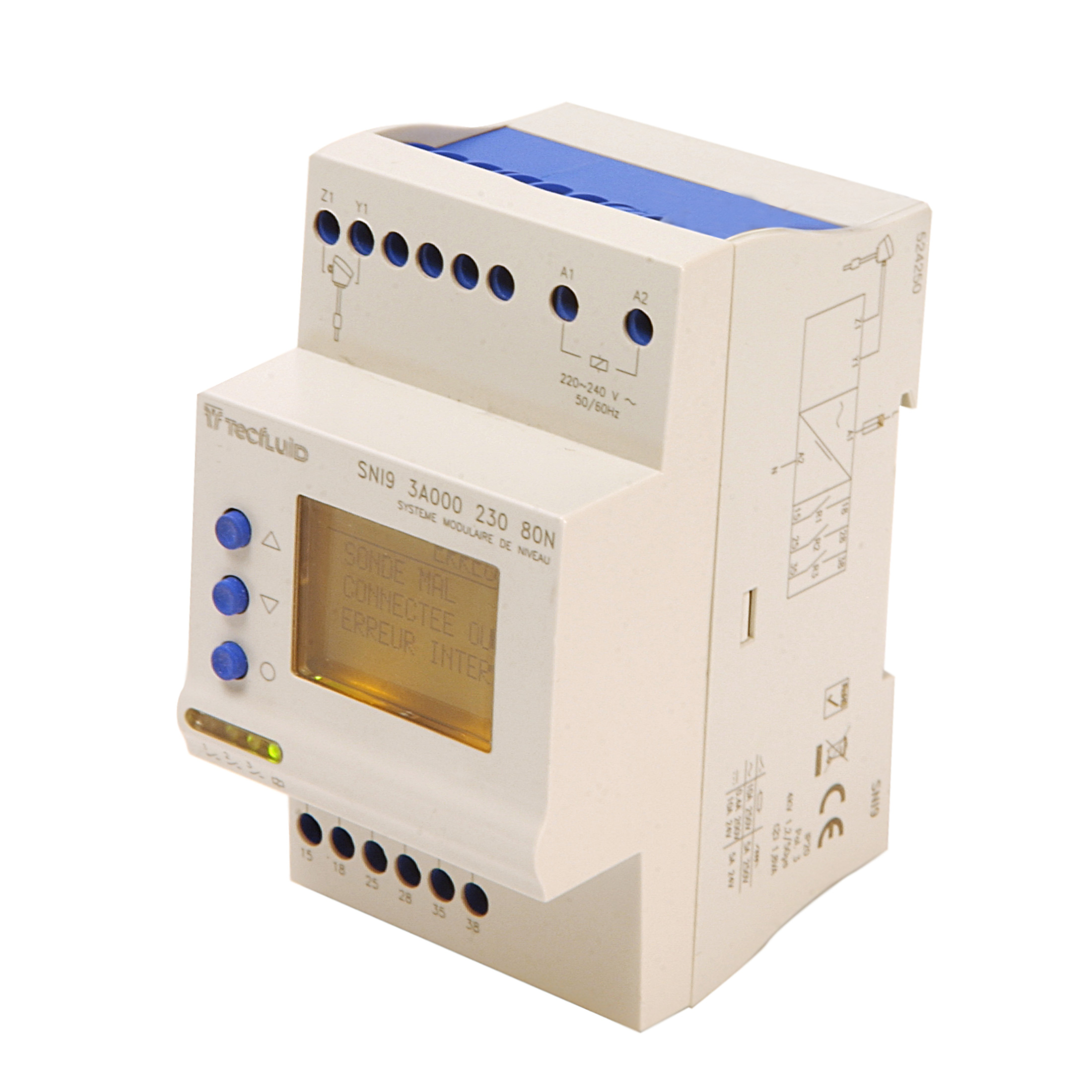

Electronic boxes SNIA and SNI:
• 3 relay outputs
• 4-20 mA analog output, RS232 or RS485
• Power supply VAC / VDC
